RoentDek PRODUCT LIST

HIGH VOLTAGE SUPPLIES AND DIGITIZING ELECTRONICS




Product
number


Product
Description

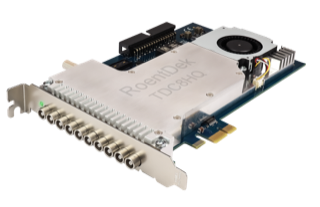

  253 TDC8HP: 8-channel TDC with <60 psec resolution (nominal least bit 25 psec), unlimited range and number of hits with dead-time of <10ns (for the first 4). Data acquisition speed up 1-2 MHz per channel (CPU dependent). Nim-signal inputs, incl. CoboldPC data acquisition and analysing software. Yields <100 micron position resolution if used with RoentDek delay-line detectors. PCI-card for 5V slot with 12 additional "low res" inputs for DC level control, incl.
PCI2PCIe: adapter crate to PCIe bus or laptop card bus for up to 3 TDC8HP units.

MANUAL

  254 TDC4HM: 4-channel TDC (PCIe-card) with common start, 13 psec resolution, maximum range 10 ms with > 16 multiple stops (5 ns dead-time for the first 16 buffered). Maximum start rate 4 MHz (single hit rate), up to 8 MHz per channel for multiple stops (CPU-dependent). Nim-signal inputs, incl. CoboldPC data acquisition and analysing software. Yields <100 micron position resolution with RoentDek DLD.
DESCRIPTION SHEET


TDC8HP

  272 fADC4/10(-N): 10 bit flash ADC system for advanced multi-hit read-out of RoentDek delay-line detectors, N = 1-8 (no. of ADC units), each ADC unit includes 1-4-channel with 1.25-5 GS/s 10 bit ADC for read-out with PC via PCIe. Includes "Soft-CFD" Software for advanced multi-hit recovery of DLD or HEX detectors.
DESCRIPTION SHEET
  273 fADC4Isr: 14 bit flash ADC system as fADC4/10 but with 250 MS/s sample rate per channel.

  148 DCA8: 8-channel amp and DC shifting module for fADC range optimization. 3HU case with external mains adapter.
DESCRIPTION SHEET


  299 CoboldPC 2011: comfortable and powerful data-acquisition and analyzing software for multi-parameter experiments, online and offline analysis, for Windows XP and Windows 7 (32/64 bit).
MANUAL Cobold 2002
MANUAL Cobold 2008 (in order to view this file, you may have to unblock Windows Help files after download)
MANUAL Cobold 2011 (in order to view this file, you may have to unblock Windows Help files after download)


  160 LogX4: 4-channel Logic Module for NIM signals. Eight logic functions (and invert) for up to two NIM input signals, e.g. AND, OR, NOT, EQ, 3 NIM outputs per channel plus one inverted with variable output length from 10 ns to 10 µs. Two channels can be combined to a Gate&Delay circuit. Single width NIM unit. Requires a NIM-bin for operation, not included.*
DESCRIPTION SHEET
  162 LogX1: Single channel stand-alone version of Logic Module


  161 FanO4: 4-channel logic NIM signal multiplexer with five outputs per channel. Optimized for timing applications. Single width NIM unit. Requires a NIM-bin for operation (with ± 6V), not included.*
DESCRIPTION SHEET

  170 APG1: Test pulser for testing and calibration of electronic modules and delay-line anodes. Provides Nim pulses and attenuated pulses (40 dB) with adjustable repetition rate and width. Single box powered via USB-port (or external +5V source, e.g. battery).
DESCRIPTION SHEET



  290 RM-6: Digital rate meter and scaler for up to 6 channels with bright LED display and data read-out via Bluetooth and USB.
DESCRIPTION SHEET


  299 CoboldPC 2016: comfortable and powerful data-acquisition and analyzing software for multi-parameter experiments, online and offline analysis, for Windows 7-10 (32/64 bit).





* Please inquire for optional mains adapter/stand (100-250V AC) for NIM units.
