RoentDek PRODUCT LIST

DIGITAL READ-OUT AND NIM LOGIC ELECTRONICS




Product
number


Product
Description


  253

TDC8HP: 8-channel TDC with <60 psec resolution (nominal least bit 25 psec), unlimited range and number of hits with dead-time of <10ns (for the first 4). Data acquisition speed up 1-2 MHz per channel (CPU dependent). Nim-signal inputs, incl. CoboldPC data acquisition and analysing software. Yields <100 micron position resolution if used with Roentdek DLD or HEX. PCI-card for 5V slot with 12 additional "low res" inputs for DC level control.
Incl. PCI2PCIe: adapter crate to PCIe bus or laptop card bus for up to 3 TDC8HP units. Compatible with Win Vista up to Win10 32/64 bit. (PCI-crate not compatible with PC from HP.).
MANUAL      DESCRIPTION SHEET


  254

TDC4HM: 4-channel TDC (PCIe-card) with common start, 13 psec resolution, maximum range 10 ms with > 16 multiple stops (5 ns dead-time for the first 16 buffered). Maximum start rate 4 MHz (single hit rate), up to 8 MHz per channel for multiple stops (CPU-dependent). Nim-signal inputs, incl. CoboldPC data acquisition and analysing software. Yields <100 micron position resolution with RoentDek DLD. Compatible with Win Vista up to Win10 32/64 bit.
DESCRIPTION SHEET

TDC4HM

255/256
new

TDC4HM_lr1/lr2: as TDC4HM but with low resolution: …_lr1 with 1 ns LSB or …_lr2 with 0.5 ns LSB


257 new

cTDCx: 10-channel comparator TDC (PCIe-card) for read-out of DLD and Hex detector via CFDs or BFAMPs <100psec resolution (nominal least bit 90 psec), unlimited range and number of hits, incl. CoboldPC data acquisition and analysing software. Yields <100 micron position resolution with Roentdek DLD/HEX. Data acquisition speed at least 100kHz to > 2 MHz per channel (CPU dependent). Compatible with Win10 64 bit.
DESCRIPTION SHEET



cTDCx

258 new

TDC8HQ: (successor of the TDC8HP) 8+1-channel TDC with 20 psec resolution (13 ps LSB) and one ADC channel. Unlimited range and number of hits with dead-time of <10ns. Data acquisition speed up to 12 MHz per channel / 48 MHz total (CPU dependent). NIM/TTL-signal inputs, incl. CoboldPC data acquisition/analysing software and support for Python/LabView included. Yields <100 micron position resolution if used with RoentDek DLD or HEX. PCIe-card. Two cards can be synchronized (TDC16HQ). Compatible with Win10/11 64 bit.

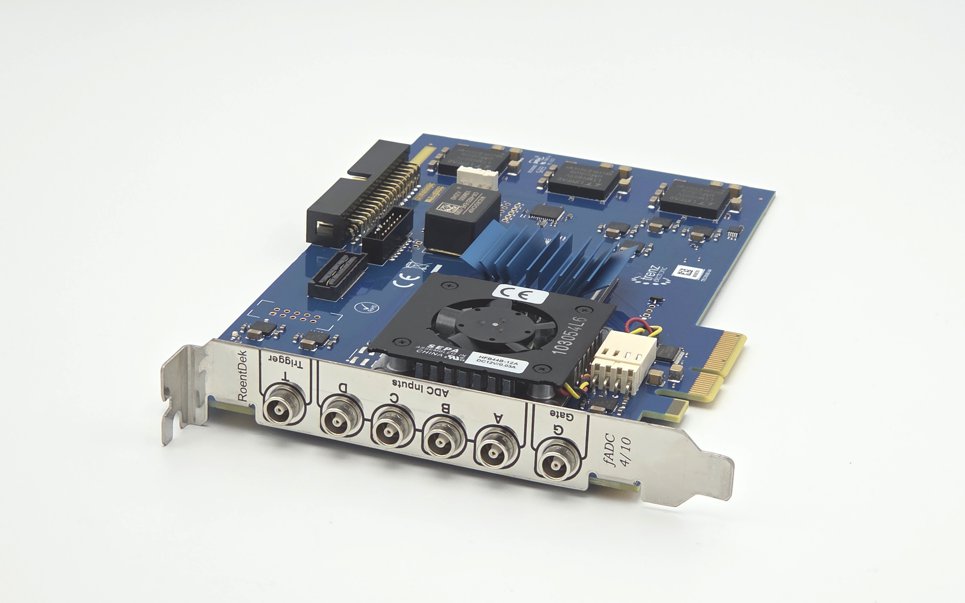

  272 fADC4/10(-N): 10 bit flash ADC system for advanced multi-hit readout of RoentDek delay-line detectors, N =1-8 (no. of ADC units), each ADC unit includes 1-4-channel with 1.25-5 GS/s 10bit ADC for read-out with PC via PCIe. Includes "Soft-CFD" Software for advanced multi-hit recovery of DLD or HEX detectors.
DESCRIPTION SHEET      EXPORT REGULATIONS
  273 fADC4Isr: 14 bit flash ADC system as fADC4/10 but with 250 MS/s sample rate per channel.      EXPORT REGULATIONS

  274 ATC1: ADC add-on card for the TDC8HP-card with 3 ADC channels.
DESCRIPTION SHEET

  148 DCA8: 8-channel amp and DC shifting module for fADC range optimization. 3HU case with external mains adapter.
DESCRIPTION SHEET


  290 RM-6: Digital rate meter and scaler for up to 6 channels with bright LED display and data read-out via Bluetooth and USB.
DESCRIPTION SHEET      MANUAL


  299 CoboldPC 2016: comfortable and powerful data-acquisition and analyzing software for multi-parameter experiments, online and offline analysis, for Windows 7-10 (32/64 bit).
MANUAL Cobold 2002
MANUAL Cobold 2008 (in order to view this file, you may have to unblock Windows Help files after download)
MANUAL Cobold 2011 (in order to view this file, you may have to unblock Windows Help files after download)


  160 LogX4: 4-channel Logic Module for NIM signals. Eight logic functions (and invert) for up to two NIM input signals, e.g. AND, OR, NOT, EQ, 3 NIM outputs per channel plus one inverted with variable output length from 10 ns to 10 µs. Two channels can be combined to a Gate&Delay circuit. Single width NIM unit. Requires a NIM-bin for operation, not included.*
DESCRIPTION SHEET

  162 LogX1: Single channel stand-alone version of Logic Module
DESCRIPTION SHEET

  161 FanO4: 4-channel logic NIM signal multiplexer with five outputs per channel. Optimized for timing applications. Single width NIM unit. Requires a NIM-bin for operation (with ±6V), not included.*
DESCRIPTION SHEET

  163 RDiv1: 150 MHz rate divider for NIM and TTL signals, with input/output frequency ratio adjustable between 2 and 256. Outputs NIM and TTL.
DESCRIPTION SHEET      MANUAL

  165 G&D2: Dual-channel gate-and-delay generator for NIM/TTL signals. Delay and gate width selectable between <100 ns and 100 µs. With separate AND logic circuit for NIM signals. Single box unit incl. external mains adapter (100-250V AC).
DESCRIPTION SHEET

  170 APG1: Test pulser for testing and calibration of electronic modules and delay-line anodes. Provides Nim pulses and attenuated pulses (40 dB) with adjustable repetition rate and width. Single box powered via USB-port (or external +5V source, e.g. battery).
DESCRIPTION SHEET



  180 USB-IO1: Computer controlled analog/digital I/O-module for setting of analog voltages 0-10V (2 channel output, for remote control, i.e. of HV2/4), read-out of DC levels (2 channels 0-10V), Voltage in-/output via lemo. Supports additionally 2+5 digital switches/level probes.
DESCRIPTION SHEET
  181 USB-IO2: Computer controlled analog/digital I/O-module for setting of analog voltages -5V to +5V (8 channel output), Voltage output via lemo.
DESCRIPTION SHEET




    * Please inquire for optional mains adapter/stand (100-250V AC) for NIM units.
